ICPE-9800 Series - Opcije

Multitype ICP Emission Spectrometers

Peripheral Equipment

AS-10 Autosampler
For automatic analysis of 60 samples

Multiple samples can be analyzed successively. The turntable results in a short path length for sample injection, which can reduce the rinse time.

Vials: 60 15-mL vials
           8 50-mL vials
Size: W290 × D508 × H300 mm (excluding arm)
Power supply: Single-phase 100–240 V, 50/60 Hz, 50 VA

Note: Requires a Power Cord.
Note: An additional rinsing port is optional (There is no automatic solvent supply).
         Rinsing Port Expansion Kit for AS-10.

ASX-280 Autosampler
For automatic analysis of 120 samples

Vials: 10 50-mL vials (standard samples) or 120 14-mL vials
         80 20-mL vials (rack sold separately)
         42 50-mL vials (rack sold separately)
Size: W355 × D550 × H620 mm(include sample probe)
        W90 × D180 × H60 mm (rough dimensions of power supply unit)
Power supply: 100-240 V AC, 47-63 Hz, 1.9A
Weight: 8.1 kg (main unit)

Note: Requires an ASX Connection Kit ICPE-9800.

ASX-560 Autosampler
For automatic analysis of 240 samples

Vials: 10 50-mL vials (standard samples) or 240 14-mL vials
       160 20-mL vials (rack sold separately)
         84 50-mL vials (rack sold separately)
Size: W580 × D550 × H620 mm (include sample probe)
        W90 × D180 × H60 mm (rough dimensions of power supply unit)
Power supply: 100-240 V AC, 47-63 Hz, 1.9 A
Weight: 11.7 kg (main unit)

Note: Requires an ASX Connection Kit ICPE-9800.

Cooling Water Circulator

Used to cool the main unit, the cooling jacket, and the ultrasonic nebulizer.

Size: W377 × D500 × H615 mm
Power supply: AC 200 V–230 V, 50/60 Hz, 2 kVA
Weight: 43 kg

Note: A Chiller Connection Kit, or a Chiller Connection Kit, UAG is necessary.
Note: Two hoses (10 m) are included in the connection kit. One is for the supply of cooling water, the other for draining water.

For high-sensitivity analysis of As, Se, and Sb
Hydride Generator HVG-1

Note: HVG-ICP Connection Kit for ICPE-9800 and pump are required.

For high-sensitivity analysis of Na or K in organic solvent samples
Argon and Oxygen Gas Mixture Supply Unit (special order)

Normally, the ICPE-9800 does not require oxygen gas to be added to the plasma when organic solvent samples are measured. However, when trace amounts (ppb levels) of elements such as Na and K in organic solvent are measured, carbon can cause background problems. A four-layered torch is useful for reducing such problems by introducing oxygen safely into the plasma.

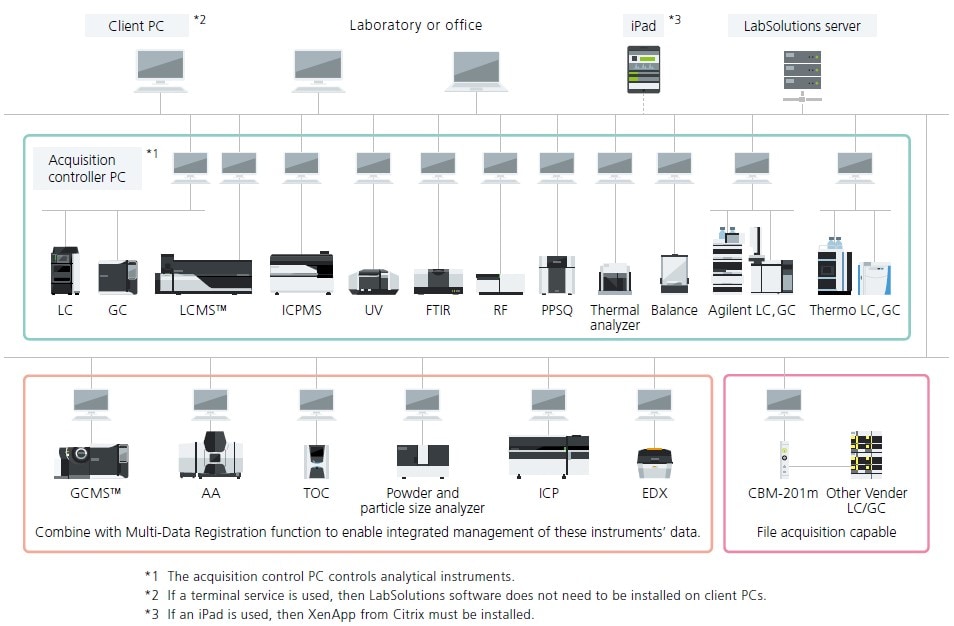

Freely Accessible Analytical Lab Network

The “Multi-Data Register Connection Kit for ICPE” (option) is available to meet regulations for electronic records and signatures, such as FDA 21 CFR Part 11.
The measurement results of HPLC, GC, GCMS, LCMS, UV, FTIR, balance, TOC, thermal analysis, particle size distribution (SALD), and other analyzers in the laboratory can be managed in the LabSolutions server.
