SH-I-17

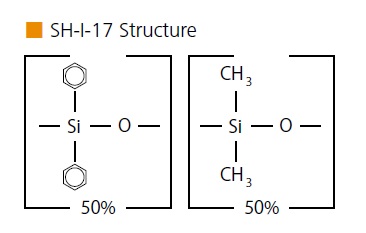

  • Mid-polarity phase: Crossbond™ 50% diphenyl / 50% dimethyl polysiloxane
  • General-purpose columns for pesticides, herbicides, rosin acids, phthalate esters, triglycerides, sterols.
  • Similar phases: Rxi-17, HP-17, DB-17, DB-17HT, DB-608, SPB-17, ZB-50
P/N ID df (Film Thickness) Length Temp. Range
227-36061-01 0.18 mm 0.18 μm 20 m 40 to 280/320°C
221-75907-30 0.25 mm 0.25 μm 30 m 40 to 280/320°C
227-36062-01 0.25 mm 0.50 μm 30 m 40 to 280/320°C
227-36063-01 0.25 mm 1.00 μm 30 m 40 to 280/320°C
227-36064-01 0.32 mm 0.25 μm 30 m 40 to 280/320°C
227-36065-01 0.32 mm 0.50 μm 30 m 40 to 280/320°C
227-36066-01 0.32 mm 1.00 μm 30 m 40 to 280/320°C
227-36067-01 0.53 mm 0.25 μm 30 m 40 to 280/320°C
227-36068-01 0.53 mm 0.50 μm 30 m 40 to 280/320°C
227-36069-01 0.53 mm 0.83 μm 30 m 40 to 280/320°C
221-76193-30 0.53 mm 1.00 μm 30 m 40 to 280/320°C
227-36070-01 0.53 mm 1.50 μm 30 m 40 to 280/320°C
