Electricity, Electronics, and Optics

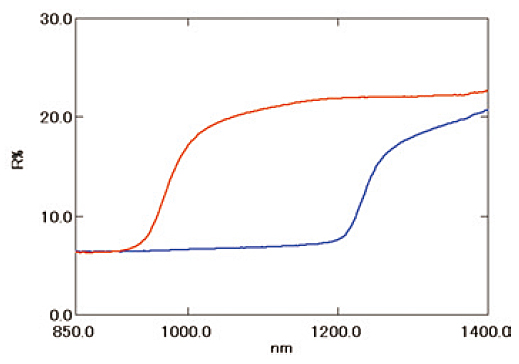

Band Gap Measurements for Compound Semiconductors

Band Gap Measurements for Compound Semiconductors

The diffuse reflection spectra for two types of compound semiconductors (red line: Culn0.5Ga0.5Se2, blue line: CulnSe2) used as solar cell materials have been measured using the ISR-2600Plus integrating sphere. It is evident that the absorption edge (position where the reflectance drops) differs depending on the sample. This difference signifies a difference in the band gap* for these samples. (The samples were provided by Wada Laboratory, Faculty of Science and Technology, Ryukoku University.) The band gaps for the samples were calculated utilizing the Tauc method. The results obtained were 1.27 eV for Culn0.5Ga0.5Se2 (red line) and 0.99 eV for CulnSe2 (blue line). * The term band gap refers to the energy difference between the top of the valence band, which is full of electrons, and the bottom of the conduction band, which does not contain electrons.

Construction

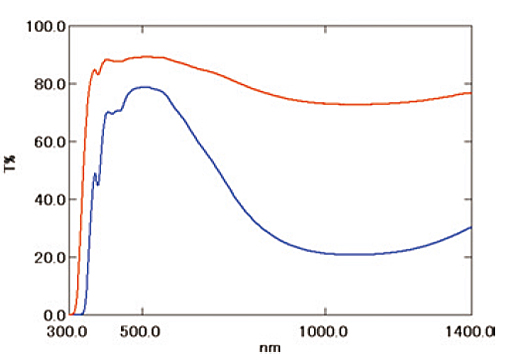

Window Glass Transmission Measurements

Window Glass Transmission Measurements

Two types of window glass were measured utilizing the ISR-2600Plus integrating sphere. The sample shown by the red line is highly transparent to near-infrared light at 800 nm or more. The sample shown by the blue line, however, is apparently not very transparent to near-infrared light.

Chemicals

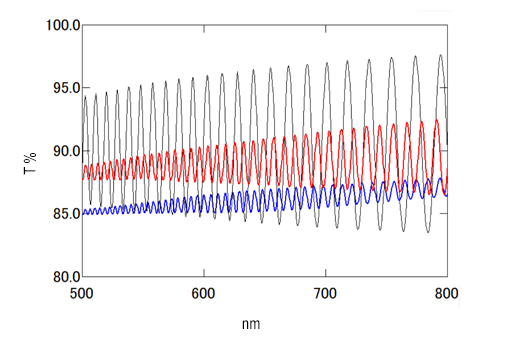

Thickness Measurements of Cling Films

Thickness Measurements of Cling Films

Undulating interference waveforms sometimes occur if light is passed through a film. The film thickness of a sample can be determined by using these interference waveforms. The figure shows transmittance data for a cling film. A clear interference waveform is produced. Utilizing optional film thickness measurement software, the film thickness is calculated as 10.4 μm. (Caution) The sample's refractive index must be entered for the film thickness calculation.

Textiles

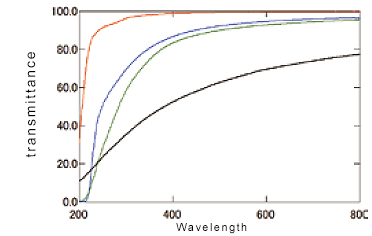

Total Transmittance Spectrum of CNF

Total Transmittance Spectrum of CNF

An ISR-2600Plus integrating sphere was used to measure the total transmittance spectrum of cellulose nanofiber (CNF). Depending on the raw materials used, spectra can vary, transparency can vary, and spectral tendencies in the ultraviolet region can vary.

Life Sciences

DNA and Protein Measurements

The red and blue lines are the absorption spectra for dsDNA and BSA (bovine serum albumin), respectively.
The concentration values are 45 ng/μL for dsDNA and 2.2 mg/mL for BSA.

Foods

Vitamin Measurements

This shows the absorption spectra for riboflavin (vitamin B2).
The sample concentrations are, in order from the highest absorbance, 0.08,
0.04, 0.02, and 0.01 mg/mL.
